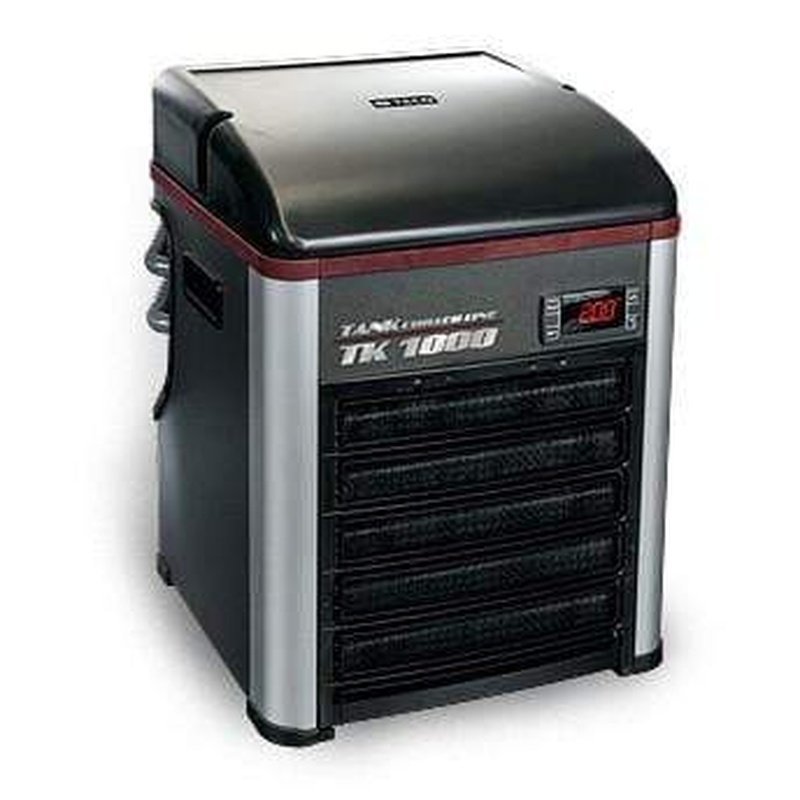

Teco has once again reshaped the chiller industry by introducing the most energy-efficient and environmentally friendly chiller to date for the Aquarium Tank and Hydroponic industries. Centered around a proven Hydrocarbon refrigerant compressor with R290 coolant, the new Teco CHILLER ONLY models, 500, 1000, and 2000 chillers can easily outperform traditional compressors by cutting energy consumption/costs by 30% to 50%. Additionally, R290’s environmentally friendly characteristics mean a dramatic decrease in the earth’s ozone destruction by up to 600 times over traditional chiller refrigerants.
Less operating cost and more of Earth’s ozone sound like a winning combination for everyone!
R290 Benefits
- Reduces energy consumption and costs up to 30% to 50%
- Replaces traditional ozone-damaging refrigerants
- Scores an incredible 3 out of 150 on the Global Warming Potential (GWP) scale
Efficient Cooling Technology
The exclusive use of high-quality compressors and of the titanium coaxial heat exchanger, ensures high performance and low energy consumption. The set of technologies used allows you to decrease noise levels and achieve the highest COP (Coefficient Of Performance) contributing to significant energy savings.
WiFi model. TECOnnect unit required for Wifi control.
Digital Thermostat
Intuitive setting of functions and accurate temperature detection, resolution 0.1°C/0.2°F. The setting range is 5-35°C (32°F-95°F) and there is a closed loop temperature control system with high accuracy and extremely tight differential (0.5°C/1°F). Displayed temperature is in °C or °F and there are security alarms.
Efficient Design
.
The chiller, with its innovative design, is characterized by a solid structure designed to guarantee a perfect protection against rust. The functionality of the shape and the compact size are also suitable for confined spaces.
.
Unique Feature
.
The innovative TECOair SYSTEM makes it possible to rotate the conveyor, thus ensuring optimal air exchange for the chiller and heat output from the cabinet. Quick and easy magnetic air filter maintenance.
Pump and plumbing accessories required (not included).
Technical Details
| Supply |
|
230V-50Hz |
| Cooling Power Consumption |
|
270 w |
| Ecological Refrigerant |
|
R290 |
| Min and Max Flow Rate |
|
500 l/h – 800 l/h |
| Tank Size |
|
up to 1000 l |
| Dimensions (millimetres) |
|
310 (w) x 310 (d) x 458 (h) |
| Dimensions (inches) |
|
12.2 (w) x 12.2 (d) x 18.03 (h) |
| Weight |
|
19.7 kg |
| Connections |
|
fitting 3/4″ – 16mm int. tube diameter |
1 year warranty
